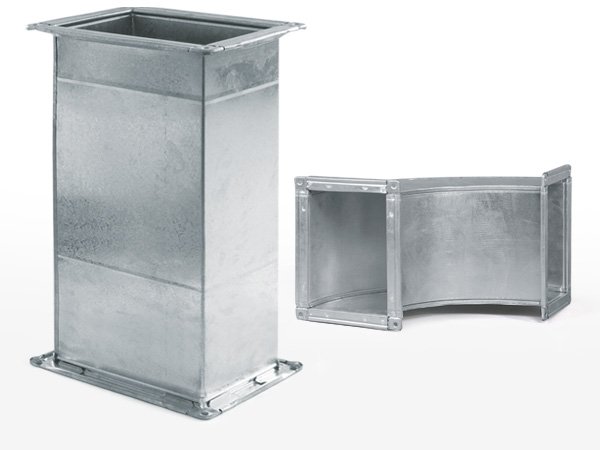

Rectangular duct is made from galvanized iron or stainless steel that is folded and assembled into the desired form. It can be insulated against heat on both sides and can be coated with oil paint at the customer’s order. Our design and production are made with automated machine controlled by advanced computer system. Every stage of production meets the standards. The product is perfect for air ducting and ventilation ductwork.
Material | galvanized iron, stainless steel |
Thickness | 0.45 – 1.4 mm , 0.4 – 1.5 mm |
Size | from 100 x 100 mm to 4,000 x 4,000 mm |
Insulation | Can be insulated both inside and outside |
Pressure | 2 – 10 water-inches |
Others | Can be coated with oil paint |
Usage |
|
A: Metal Duct คือท่อลมที่ผลิตจากโลหะ เช่น เหล็กเคลือบสังกะสี สแตนเลส หรือเหล็กดำ ใช้ในระบบปรับอากาศ ระบบจ่ายลม ระบบดูดกลับ และระบบระบายอากาศ

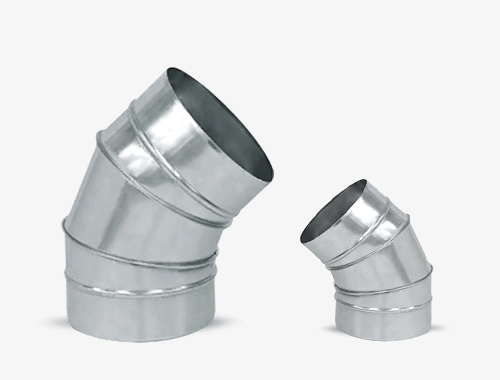

A: เหมือนกัน โดย Spiral Duct เป็นชื่อภาษาอังกฤษ ส่วนท่อสไปรัลเป็นคำเรียกภาษาไทยของท่อลมโลหะทรงกลมที่ขึ้นรูปด้วยตะเข็บเกลียว
A: ขึ้นอยู่กับอุณหภูมิ ความชื้น สิ่งปนเปื้อน และสภาพแวดล้อม ท่อสังกะสีเหมาะกับงานทั่วไป ส่วนสแตนเลสหรือเหล็กดำอาจเหมาะกับงานที่มีข้อกำหนดเฉพาะมากกว่า
A: ต้องพิจารณาประเภทควัน อุณหภูมิ ไขมัน สารเคมี และข้อกำหนดด้านอัคคีภัยก่อนเลือกวัสดุ ไม่ควรเลือกจากราคาเพียงอย่างเดียว
A: พิจารณาจากวัสดุ ขนาดด้านยาวที่สุด แรงดัน ระยะห่างของตัวเสริมความแข็งแรง และมาตรฐานที่โครงการกำหนด
